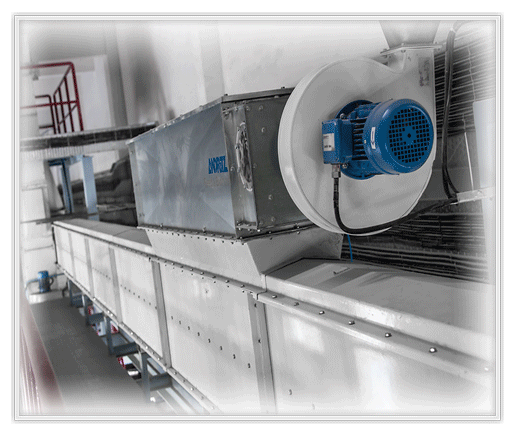

» PNEUMATIC TRANSPORT FILTER
ANDRITZ has more than 30 years of experience in filtration and dust handling and our filters have demonstrated their superior function and operating reliability in many branches of industry. The result of targeted collaboration with customers, suppliers, and research institutes is a wide range of filters that can be used for most types of industrial dust filtration. Our filters are the safe choice for dust filtration at your production plant.
 |
Benefits:
- Well-proven mechanical and electronic components
- Designs focus on reliability, economy and flexibility
- Low energy consumption
- Pressure-shock resistant on demand
- A compact modular design and modular structure allows for ease of installation
- Explosion protection and suppression are in conformance with VDI 3673 / EN 14491
The ANDRITZ range of filters:
Filter type DFAK
- Compact bag filter in rectangular housing and cleaned by compressed air
- Used especially for mounting directly on screw conveyors, bucket elevators and silos
- Design: Horizontal or vertical
Filter type DFB
- Bag filter in rectangular housing and cleaned by compressed air
- Especially well-suited for minor suction jobs in continuous processes
- Design: Insertable, encased or freestanding filter with cone
Filter type DFE
- Bag filter cleaned by compressed air and mounted in rectangular housing made of galvanized steel plate, specially designed for suction from intake hoppers.
- Design: Encased with various possibilities for dust suction.
Filter type EFF
- The EFF filter is especially suited for filtering air with high dust content at high vacuum and temperature and for production meeting high hygiene standards
- Design: Insertable, encased, free-standing with cone or free-standing with scraper
More info:
https://www.andritz.com/products-en/group/feed-biofuel/air-and-dust-filters-feed-and-biofuel

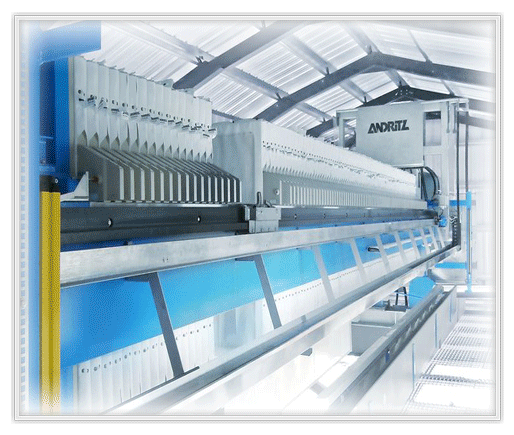

» PRESS FILTERS
The basic components of a filter press are the frame, filter plate pack, closing device, and optional additional features. The filter press frame structure is available in two versions: the sidebar and the overhead beam designs. The size of the filter press is defined by the dimensions of the filter plate. We manufacture filter presses in sizes 250 x 250 to 2,500 x 2,500 mm and filtration pressures up to 60 bar.
|
|
Filter press types:
Chamber filter presses
Chamber filter presses are reliable and robust in many different applications. The plate pack consists of uniform chamber plates with a recess of 15-50 mm to receive the filter cake. The standard material for chamber plates is polypropylene. Possible operating pressures: 6 bar, 15 bar and 30 bar.
Membrane filter presses
Membrane filter plates are designed just like the chamber plates described above. A flexible membrane is fixed to the support body. Materials for the membranes include polypropylene, synthetic rubber (e.g. NBR, EPDM), or thermoplastic elastomer (TPE). Special materials are also available, such as PVDF. The membrane is impermeable and compresses the cake within the chamber after the filtration process is complete. Liquid or gas (compressed air) can be used as membrane inflation media. In order to guarantee maximum protection for the membrane filter press, we use special safety systems for the various membrane inflation media. Inflation pressures up to 30 bar are possible, and in special cases even higher.
Plate & frame filter presses - sheet filters
The chambers of this type of filter press are formed by combining polypropylene filter plates and frames. This creates chambers of 5-40 mm, depending on frame thickness. Plate and frame type filter presses are suitable for pre-coating filtration, which in the beverage industry is used for clear filtration. ANDRITZ supplies plate and frame type filter presses for operating pressures up to 6 bar.
More info:
https://www.andritz.com/products-en/group/separation/filter-presses/filter-press-side-bar-overhead
